Working with Designers & Engineers to attain the best possible 3D Design

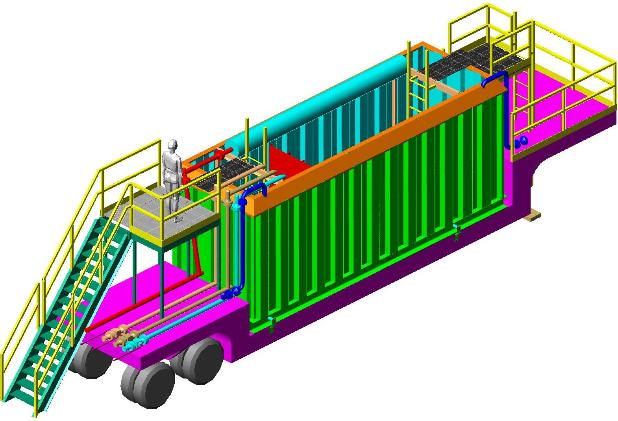

Oilfield Flowback Tank

All of the below example drawings were created simply by externally referencing the
above 3D Model into a new drawing.  Depending on the drawing simply freezing a few
layers controlled what is displayed.  In other drawings a
Clipped View was created to
show a small slice of the model. This is a tremendous tool for designing that saves many
hours.

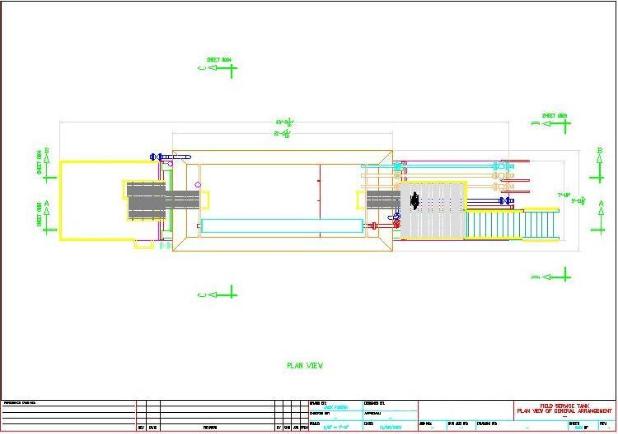

Plan View with Sections Callouts

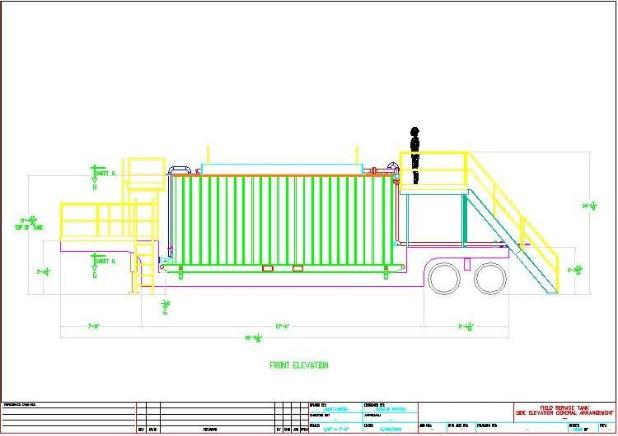

Side Elevation

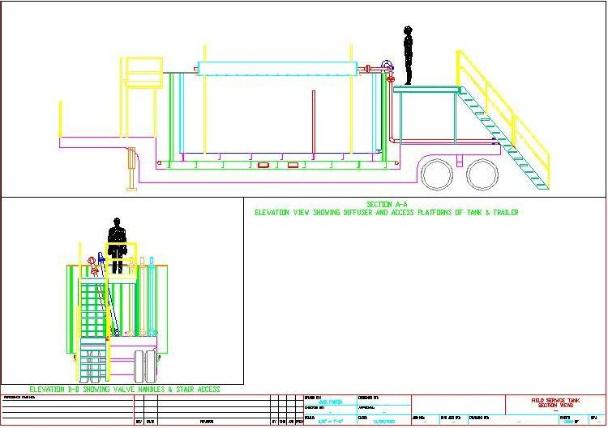

Elevation Sections

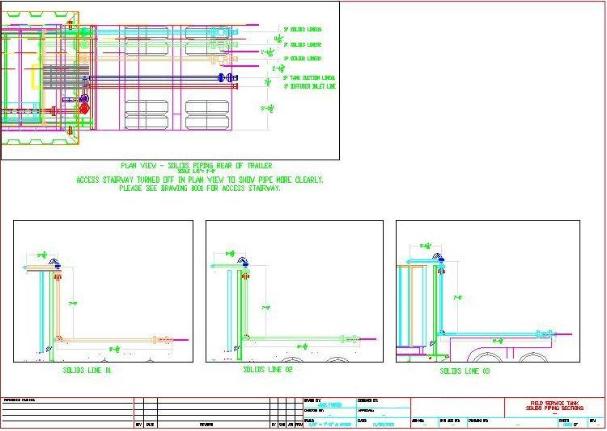

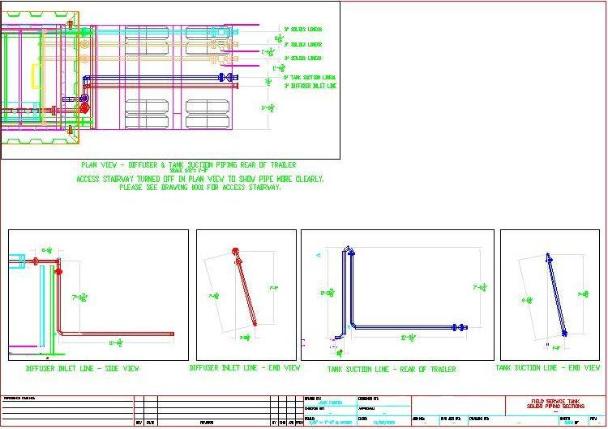

Piping Details Plan & Sections

The two piping drawings above and below were created using Clipped Views. This is
an incredibly handy method for designing that will save many hours and ultimately lead
to a better overall design.  It makes designing in 3D a much easier job.
