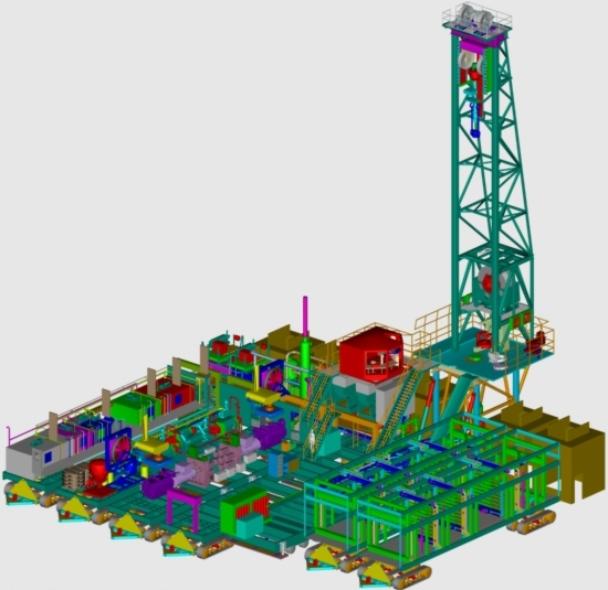

Modular Drilling Rig for the Alaska North Slope

The above drill rig was designed entirely in 3D.  It consist of various systems
constructed on tracked frames allowing it to be rapidly deployed for drilling as needed.

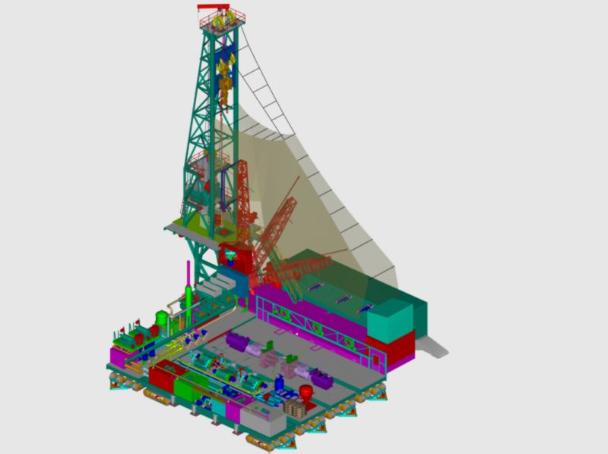

Drilling Rig with Windscreen

Wind screen is shown transparent and pipe handling arm is shown multiple times to
illustrate the path it travels.  Exterior covers on modules have also been removed to
show internal components.

Drilling Solids Removal Module

Equipment and piping in all modules is very tight and restrictive.  Being able to do 3D
Clipped views was a tremendous time saver in being able to design with minimal
interference problems throughout the whole project.  Please see the page that explains
the advantages of Clipped views.

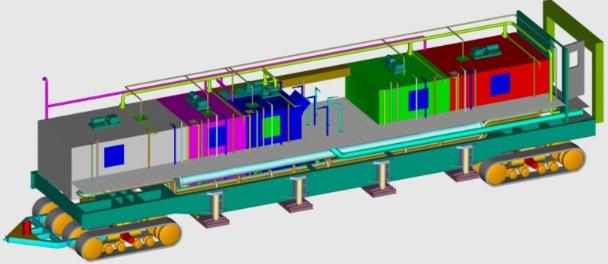

Drilling Mud Control Module

A large amount of piping has been located beneath the grating to allow good access
for the operators as well as being able to perform maintenance on all of the valves.

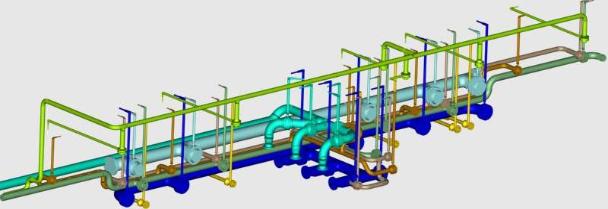

Piping Broken out for analysis

A large amount of piping has been located beneath the grating to allow good access
for the operators as well as being able to perform maintenance on all of the valves.
