Working with Designers & Engineers to attain the best possible 3D Design

Oilfield Separation Tank

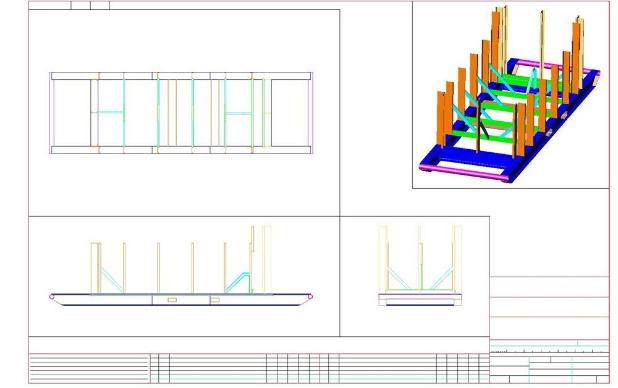

Support Steel Plan & Elevation Details

Different parts of a design can be broken out and placed into 2D style construction
drawings as required.  The 3D perspective view at the upper right illustrates very clearly
what the design consist of.

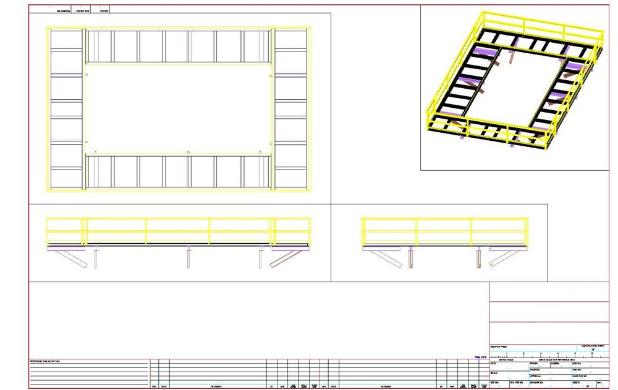

Walkway Plan & Elevation Details

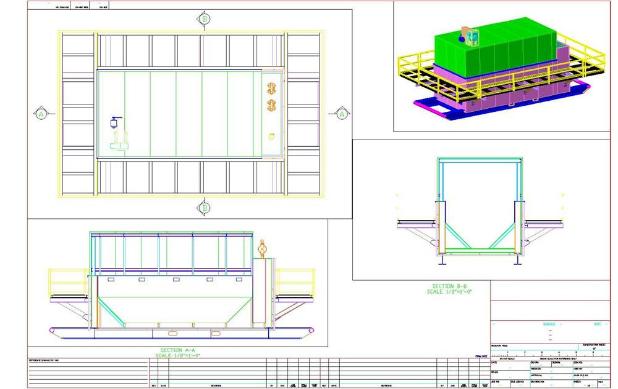

Plan, Sections & Details

Another example of how parts of a design can be broken out and placed into 2D style
construction drawings as necessary.

The two elevation views in the above drawing were created using clipped views.
Creating each of these views took just a few minutes.  To duplicate these views drawing
in 2D would have taken hours to complete.  A great example of the advantages of 3D
design methods and skills and knowledge.
